  Cost efficient

Single sensor Pan-Ceph solution with an excellent price / performance ratio.

  Intuitive use

Quick exposure program selection for daily diagnosis.

  Fast and reliable positioning

3 aiming beams and smart positioners for easy and stable patient positioning.

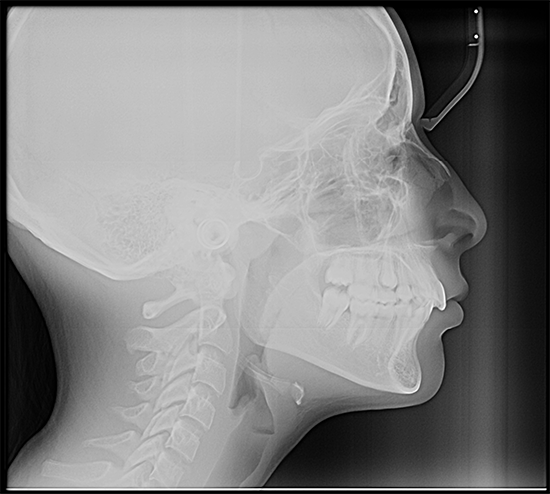

Cephalometric image

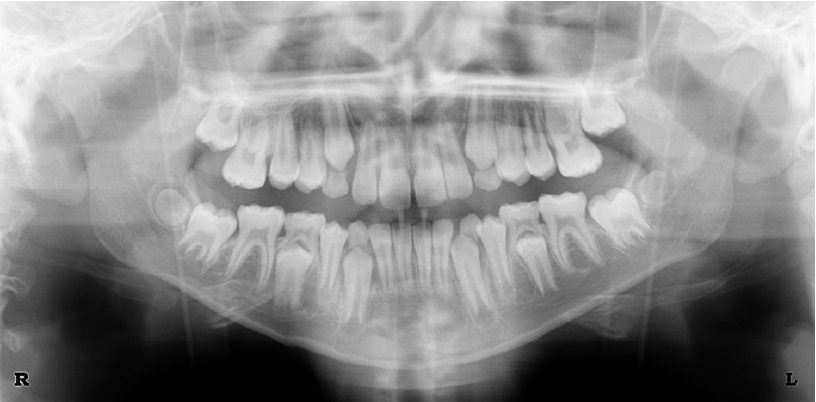

Panoramic image



  Quick and intuitive program selection

Exposure parameters are easily set by selecting from 4 patient sizes, and 7 panoramic or 3 cephalometric programs.

  Removable sensor technology

Meet the needs of panoramic and cephalometric images with just one sensor: a Pan-Ceph solution with an excellent price-performance ratio.

  Easy and stable patient positioning

The face-to-mirror laser guided positioning with the bite block and optional head rest helps to avoid patient movement, reducing the risk of blurring on the radiographic image.

  OrisWin DG Suite imaging software

Optimize your workflow by managing patient data, image
post-processing and diagnostics all in one application. OrisWin DG is compatible with the entire FONA digital imaging product range and will integrate perfectly into your existing dental studio network.

  Remote control

With the optional remote control, exposure can be released from outside the X-ray room, allowing full installation and operation flexibility.



Receptor technology CCD sensor
Image Resolution 5 lp/mm
Dynamic range / Grayscale 16 bits / 65,536 gray shades
Exposure time Pano / Ceph 2.2 – 14.2 s / 8 – 10 s
PC connection GigaBit Ethernet
Focal Spot 0.5 (IEC 60336)
Tube Voltage 61 – 85 kV
Tube Current 4 – 10 mA
Weight Pano / Ceph 98 kg / 120 kg
Panoramic programs [1] Adult panoramic, [2] Child panoramic, [3] Left-Side Dentition,
[4] Right-Side Dentition, [5] Anterior Dentition, [6] TMJ in normal
occlusion and fully open, [7] Frontal view of Maxillary Sinus
Cephalometric programs Antero-Posterior (AP), Latero-Lateral (LL),
Carpus, Sub-Mento Vertex (SMV) in AP mode
Patient size presets [1] Large, [2] Medium, [3] Small, [4] Child
