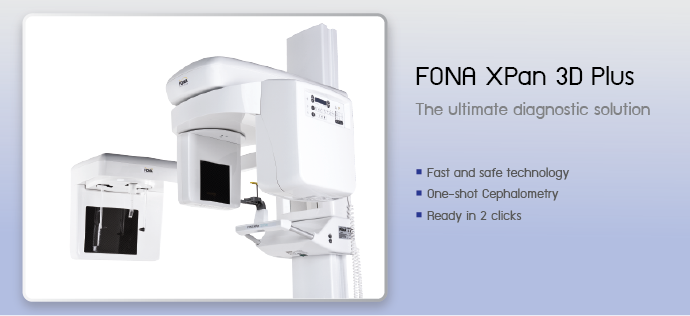

  Fast and safe technology

System with 2-sensors automatically and quickly adjusts its position toyour 3D, 2D Pano or Ceph program selection. This save time and secures your investment.

  One-Shot Cephalometry

Innovative sensors technology acquires the cephalometric image in just one second, thus preventing patient movement and increasing image quality.

  Ready in 2 clicks

Setting of exposure was never-easier-3D, Pano or Ceph injust two clicks. Simply select the program, patient size and you are ready to go.



  3D Cone beam volume of 8.5 x 8.5 in just 30 seconds

Advanced 64-bit technology allows you to have a 3D image ready for diagnosis in as little as 30 seconds from start of acquisition. Mandibular canal and maxillary sinuses are clearly visible from a single exposure.

  Implant planning at hand

Available implant planning software allows precise preparation of your implant placement and a wide
selection of more than 60 different implant brands.

  Panoramic programs for all indications

You can also select from 7 panoramic programs including Sinuses and TMJ. Child panoramic and partial arch scans are available to allow patient dose reduction including partial Left side, Right side and Anterior dentition.

  One-Shot Cephalometry

Quickly acquired and distortion-free images are immediately ready to be traced and evalutated, with detailed diagnostuc information in both soft and hard tissue.



Sensor technology CMOS Flat panel sensor and PFPT sensor
Pixel size 100 μm
Voxel size 160 μm
Focal Spot 0.5 [IEC 336 / 1997]
Tube Voltage 61 – 85 kV
Tube Current 4 – 10 mA
Exposure time 2D 14.2 seconds [max]
Exposure time 3D 12.3 seconds [max]
Exposure time Ceph One-Shot 0.2 - 4 seconds [max]
3D Ative Sensor Area 130 x 130 mm
Ceph image size 240 x 300 mm
Volume size 3D 85 x 85 mm [diameter x height]
Image reconstruction time 3D <10 seconds [standard reconstruction]
Weight 125 kg
Panoramic programs

[1] Adult panoramic, [2] Child panoramic, [3] Left-Side Dentition, [4] Right-Side Dentition, [5] Anterior Dentition, [6] TMJ in normal occlusion and fully open, [7] Frontal view of Maxillary Sinus

3D Programs [8] Complete dentition, [9] Left TMJ, [10] Right TMJ
Ceph programs [11] LL, [12] AP, [13] Carpus
Patient sizes [1] Large, [2] Medium, [3] Small, [4] Child
